Tc Create And Update Item

Optional.This Snap has at the most one document input view.

The required input of the snap is the Object type, attributes, Parent ID, parent relationship that needs to be created / linked in Teamcenter.

• Mapper
• Copy

This Snap has exactly one document output view.

The output of the snap is the newly created object in Teamcenter.

• Mapper
• JSON Splitter

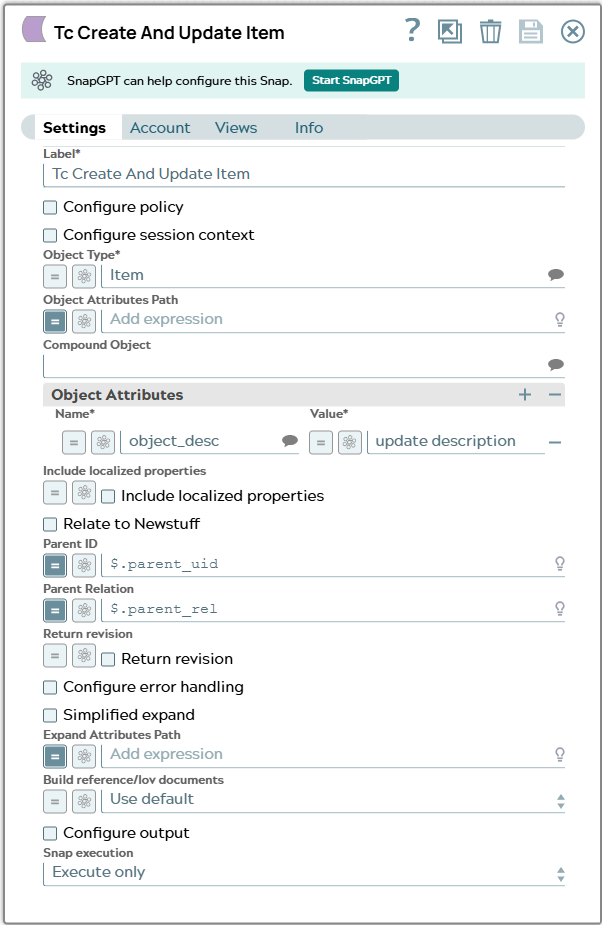

Default value: Tc Create And Update Item

Specify the type of the object to be created in Teamcenter.

In JSON document the content for path can look like this:

[
  {
    "object_type": "Part"
  }
]

Name of the JSON property has to be the technical name of a valid type in Teamcenter datamodel.

Default value: Item

Example: Item

Specify the list of attributes and values for the object from JSON input of the Snap. In JSON document the content for path can look like this:

"attributes": {
		"object_desc": "Test Create with Snap",
		"object_name": "Doku_Test"
	}

Name of the JSON property has to be the technical name of a valid property in Teamcenter datamodel for the given Object Type.

Default value: N/A

Example: $.attributes

Specify the compound object of the object to create element in Teamcenter. A compound object is used when there is a need to group related attributes or sub-objects together to represent a coherent concept or entity. It allows for better organization, clarity, and reusability of data.

Default value: N/A

Include localized properties to give values for multiple localizations of attributes.

Select this checkbox to establish a relationship between the new created object and the users Newstuff folder.

Default value: Unselected

Example: Unselected

Appears when Relate to Newstuffis deselected.

Specify the UID (unique identifier) or the Teamcenter adapter ID of the object to which the new element shall be related to.

Default value: N/A

Example: $.parent_uid

Appears when Relate to Newstuffis deselected.

Create a named reference to parent dataset.

Default value: Unselected

Example: Unselected

Appears when Relate to Newstuffis deselected.

Specify the relation between the created object and the specified parent element.

Default value: N/A

Example: $.parent_rel

Select this checkbox to return the created revision instead of item element.

Default value: Unselected

Example: Selected

Select this checkbox to make the Snap look for the name given in Expand Attributes Path in the input document (for example, $expand) or in the Pipeline parameters (for example, _expand), and use that content. Expand Attributes Path then changes to a String field with the default value $.expand. In Pipeline parameters, separate the attribute names with commas.

When deselected, configure Expand Attributes Path as a string or an expression.

Default status: Deselected

Specify the JSON path to the expand attributes in the input document. Expand attributes are the list of attributes that the Teamcenter response must contain. Each name must be the technical name of a valid property in the Teamcenter data model for the expected objects. For example:

"expandAttributes": [
  "item_id",
  "item_revision_id",
  "last_mod_date",
  "object_string",
  "items_tag.uom_tag"
]

Learn more: Configuring Expand Attributes.

Default value: N/A

Example: $.expandAttributes

Select how the Snap represents references and lists of values (LOVs) that Teamcenter returns. The Snap can return them as nested JSON objects instead of flattened IDs and internal values with additional _DISPLAY attributes:

• References become {"_id": …, "UID": …, "_display": …} or null, including inside reference arrays.
• LOVs become {"_value": …, "_display": …} or null, including inside LOV arrays.

The available options are:

• Yes. The referenced object or LOV is a separate JSON object in the result. For example:

  "owning_user": {
    "_id": "TC*User*null***AgKAUUYTZLWoZA",
    "object_string": "user111 (user111)",
    "UID": "AgKAUUYTZLWoZA"
  }

• No. The referenced object or LOV is flattened into attributes on the current result object, and synthetic attributes such as those ending in _DISPLAY are added. For example:

  "owning_user": "TC*User*null***AgKAUUYTZLWoZA",
  "owning_user_DISPLAY": "user111 (user111)"

• Use Default. The Snap uses the default configured for the Snap Pack, which is Yes or No depending on the adapter.tc.snaplogic.expandReferencesAndLovs setting in the teamcenter_snappack.properties file.

Default value: Use Default

Example: Yes
