Azure SQL - Bulk Load

Overview

The Azure SQL - Bulk Load Snap performs a bulk load operation from the input view document stream to the target table by using the SQLServerBulkCopy API.

This Snap uses a memory buffer to send records to the target table instead of a temporary CSV file. The Batch size and Bulk copy timeout values can be used to tune the performance and memory used.

Note:

This Snap supports a dot (.) as a separator for milliseconds in date and time formats, which helps in handling date and time data types and functions when working with SQL Server (Transact-SQL). Learn more: Date and time data types and functions.



  • This is a Write-type Snap.
  • Does not support Ultra Tasks

Supported Accounts

Prerequisites

  • The Azure SQL database account requires the SQL Server JDBC driver. Version 4.1 and older do not support the SQLServerBulkCopy API.

Limitations

  • MicrosoftTM does not support the DateTime data type when writing to Azure Data Warehouse. As a workaround, change the data type from DateTime to varchar when writing to Azure Data Warehouse. Note that if the table does not exist in the database, enabling the Create table if not present property automatically converts all DateTime fields to varchar fields. For more information on this known issue, see Known Limitations for the batch insert operation.
  • You cannot modify certain columns in Azure SQL because they might either be computed columns or the result of a UNION operator, such as "InventoryValue."
  • The Azure Bulk Load Snap supports the money and smallmoney data types only within the following specific ranges:
    Data Type Range
    money -922,337,203,685,477.5808 to 922,337,203,685,477.5807
    smallmoney -214,748.3648 to 214,748.3647

    When you insert a value beyond the specific range, the Snap does not fail but inserts incorrect values. This issue is caused by MSSQL-JDBC dependency from Microsoft, that converts small-money/money values to int/long values. SnapLogic has reported a bug in Microsoft MSSQL-JDBC GitHub repository. You can track the issue here.

    The following table shows examples of how out-of-range values are modified during Bulk Load:

    Data Type When you update Bulk Load is updated to
    smallmoney -214758.3648 -214738.3649
    money 922337203685487.5808 922337203685467.5808

Snap views

Type Description Examples of upstream and downstream Snaps
Input

This Snap has at most two document input views.

Expected input: All input documents must contain map data with a key-value pair. All keys must be spelled the same as in columns in the target table (case-sensitive). Input documents must not contain any data other than data to be bulk-loaded. All input documents must have the same keys. If the number of keys is smaller than the number of columns in the target table, the Snap fills missing keys with null values. If key names in the input document is different from column names, the Mapper Snap can be used to map key names to column names.
Output

This Snap has at most one document output view.

Expected output: The input document stream is converted to multiple batches, which are bulk-loaded to the target table by using SQLServerBulkCopy API. The Snap converts the input data values according to the corresponding SQL Server column data types to Java class objects which SQLServerBulkCopy accepts. Outputs the bulk-load result in a key-value pair, for example: {"status" : "34687 records loaded"}. If no record is loaded because of errors, no output document is produced.

Note: When accessing a column name that contains specific characters as supported by Azure SQL, like $, #, @, etc., such field names should be enclosed in the square brackets.
Learn more about Error handling.

Examples

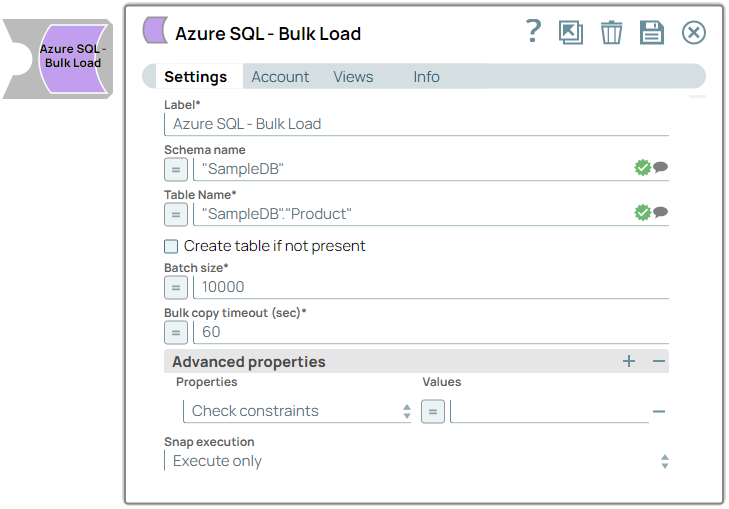

Snap settings

Note: Learn about the common controls in the Snap settings dialog.
Field/Field set Description
Label

String

Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline.

Default value: Azure SQL - Bulk Load

Example: Bulk_Load
Schema Name

String/Expression/ Suggestion		 The database schema name. If it is not defined, the suggestion for the table name will retrieve all the table names of all schemas. The property is suggestible and will retrieve associated database schemas values.
Note: The values can be passed using the pipeline parameters but not the upstream parameter.

Default value: N/A

Example: SYS
Table Name*

String/Expression/ Suggestion		 Required. Specify the target table to load the incoming data into.
Note: The values can be passed using the pipeline parameters but not the upstream parameter.

Default value: N/A

Example: users
Create table if not present

Checkbox		 Select this checkbox to create a target table in case it does not exist; otherwise, the Snap displays a "table not found" error. In the absence of a second input view (the schema/metadata document), the Snap creates a table based on the data types of the columns generated from the first row of the input document (first input view).
Warning: This should not be used in production since there are no indexes or integrity constraints on any column and the default varchar() column is over 30k bytes.
Note: Due to implementation details a newly created table is not visible to subsequent database Snaps during runtime validation. If you wish to immediately use the newly updated data you must use a child pipeline invoked via a Pipeline Execute Snap.

Default value: Deselected
Batch size

Integer/Expression		 Sets the number of rows in each batch.

Default value: 10000

Example: 1000
Bulk copy timeout (sec)

Integer/Expression		 Sets the number of seconds for each batch operation to complete before it times out.
Note: A value of 0 indicates no limit; the bulk copy will wait indefinitely.

Default value: 60
Advanced properties

Fieldset		 Use this field set to configure advanced properties.
Properties

Dropdown list		 Choose an option for SQLServerBulkCopy. The available options are:
  • Check constraints: Sets whether constraints are to be checked while data is being inserted or not.
  • Fire triggers: Sets whether the server should be set to fire insert triggers for rows being inserted into the database.
  • Keep identity: Sets whether or not to preserve any source identity values.
  • Keep nulls: Sets whether to preserve null values in the destination table regardless of the settings for default values, or if they should be replaced by default values (where applicable).
  • Table lock: Sets whether SQLServerBulkCopy should obtain a bulk update lock for the duration of the bulk copy operation.
  • Use internal transaction: Sets whether each batch of the bulk-copy operation will occur within a transaction or not.

Learn more: SQLServerBulkCopyOptions

Default value: N/A
Values

String/Expression		 The value for the selected property. The default values for each property are:
  • Check constraints = false
  • Keep identity = false
  • Keep nulls = false
  • Table lock = false
  • Use internal transaction = false

Default value: false

Example: true
Snap execution

Dropdown list
Choose one of the three modes in which the Snap executes. Available options are:
  • Validate & Execute. Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime.
  • Execute only. Performs full execution of the Snap during pipeline execution without generating preview data.
  • Disabled. Disables the Snap and all Snaps that are downstream from it.
Note:

In a scenario where the Auto commit on the account is set to true, and the downstream Snap depends on the data processed on an upstream Database Bulk Load Snap, use the Script Snap to add delay for the data to be available.

For example, when performing a create, insert and a delete function sequentially on a pipeline, using a Script Snap helps in creating a delay between the insert and delete function or otherwise it may turn out that the delete function is triggered even before inserting the records on the table.

Troubleshooting

Error Cause Resolution
com.microsoft.sqlserver.jdbc.SQLServerException SQL Server error occurred during bulk copy operation. Refer to Errors 4000 - 4999 for more details on the error code.
