Salesforce Read

Overview

The Salesforce Read Snap retrieves all records for all fields of a Salesforce object from Salesforce.

Note: To use newer Salesforce objects, use the latest API versions where those objects are available.

This is a Read-type Snap.
Works in Ultra Tasks

Supported Accounts

Limitations

When using Primary Key (PK) Chunking mode in this Snap, the output document schemas in preview mode and execution mode may differ. For more information, refer to the note in PK Chunking.
When you run more than 10 Salesforce Snaps simultaneously, the following error is displayed: "Cannot get input stream from next records URL" or "INVALID_QUERY_LOCATOR". We recommend that you not use more than 10 Salesforce Snaps simultaneously because this might lead to the opening of more than 10 query cursors in Salesforce. Refer to this Salesforce Knowledge Article for more information.

Snap views


Type	Description	Examples of upstream and downstream Snaps
Input	This Snap has at most one document input view.	Mapper
Output	This Snap has one to two document output views. The Snap allows you to add an optional second output view that exposes the schema of the target object as the output document.	Mapper
Learn more about Error handling.

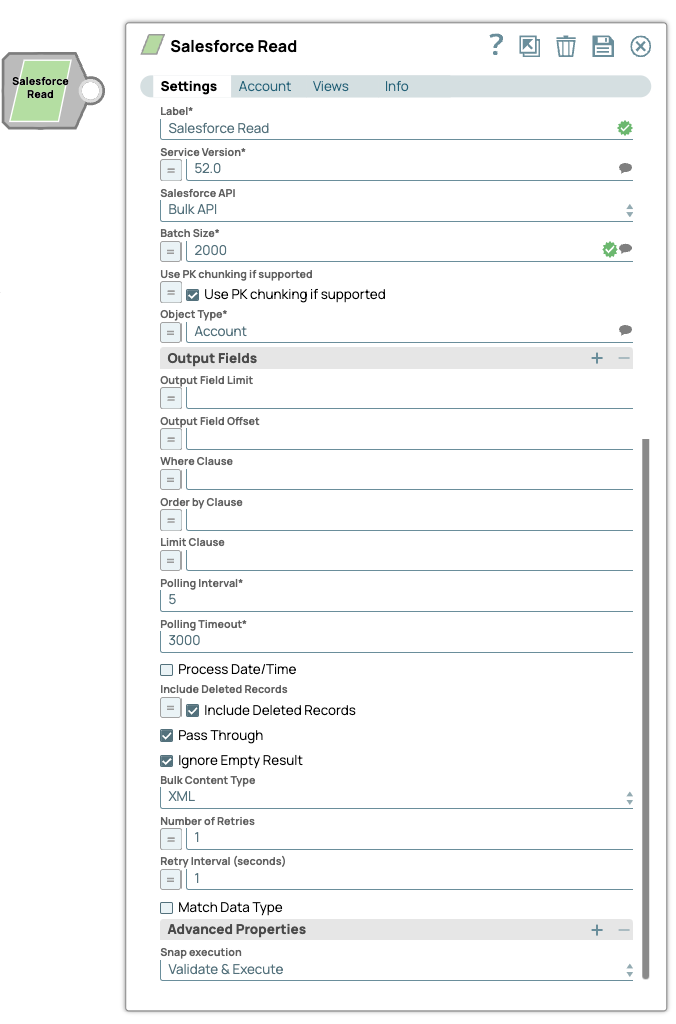

Snap settings

Legend:

Expression icon (): Allows using pipeline parameters to set field values dynamically (if enabled). SnapLogic Expressions are not supported. If disabled, you can provide a static value.
SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
Upload : Uploads files. Learn more.

Learn more about the icons in the Snap settings dialog.


Field/Field set	Description
Label `String`	Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline. Default value: Salesforce Read Example: Salesforce Read
Salesforce API `Dropdown list`	Required. Choose the Salesforce API mode to use during the pipeline execution. The available options are: REST API Bulk API Note: We recommend you to set the Salesforce API mode to Bulk API if the table size of the Salesforce object referred to in the Object Type field is large (that is, 10,000 records or more) to prevent the time-out or connection error. Default value: REST API Example: Bulk API
Service Version `Dropdown list`	Required. Specify the version number associated with the Salesforce service that you want to connect to. Alternatively, click the Suggestion icon to fetch the list of versions and select the desired version. Default value: 52.0 Example: 41.0
Batch Size `Dropdown list`	Required. Specify the size of the records to process in each batch for downloading large query results. Each batch read requires an API call against Salesforce to retrieve the set of records. REST API: The batch sizes 200 and 2000 are valid in REST API. According to the SFDC REST API documentation: "There is no guarantee that the requested batch size is the actual batch size. Changes are made as necessary to maximize performance." In fact, if the size of each record in the query result is relatively large (for example, a few hundred output fields), SFDC may respond in a batch size of 200. And if the size of each record in the query result is relatively small, SFDC may respond in a batch size of 2000 regardless if the Batch size is set to 200 or 2000. Bulk API: If you select the Use PK chunking if supported checkbox, the value from Batch Size is used as the PK chunking batch size. Refer to PK Chunking for more details. The status of the submitted bulk job and its batches can be monitored by logging in to your Salesforce.com account and going to Setup. From Setup, enter Bulk Data Load Jobs in the Quick Find box, then select Bulk Data Load Jobs. According to the SFDC Bulk API documentation (Number of attempts to query): 15 attempts at 10 minutes each to process the batch. There is also a 2-minute limit on the time to process the query. If more than 15 attempts are made for the query, an error message of 'Tried more than fifteen times' is returned. If the query takes more than 2 minutes to process, a QUERY_TIMEOUT error is returned. Therefore, if the query is expected to take a long time to execute (for example, if the target SObject has more than several hundred thousand records and the number of output fields in a record is more than a few hundred), it is highly recommended to set this property to 100,000 or 250,000 to avoid timeout errors. Note: The Snap validates using the Bulk API, even if you configure the Snap to use Bulk API with Primary Key (PK) Chunking. Default value: 2000 Example: 2000
Use PK chunking if supported `Checkbox`	Appears when you select Bulk API from the Salesforce API dropdown. Select this checkbox to use PK chunking for the bulk API request if the object supports PK chunking. If you select this checkbox, the value from Batch Size is used as the PK chunking batch size. Please note that the chunk size applies to the number of records in the queried table rather than the number of records in the query result. For example, if the queried table has 10 million records and 250,000 is selected for Batch Size, 40 batches are created to execute the bulk query job. One additional control batch is also created and it does not process any records. Learn more about PK Chunking. Note: You can enable expressions for this field in order to use input values from the pipeline parameters. Pipeline parameters are strings, and any non-empty string is treated as `true` in the SnapLogic Expression Language. If you create expressions for Boolean properties that use pipeline parameters, keep this in mind. For example, `_IncludeDeleted` does not work correctly when the value is `false`. Instead, use `_IncludeDeleted == 'true'`. Default value: Deselected
Object Type `String/Expression/ Suggestion`	Required. Specify the name of the Salesforce object or select one from the suggested list. Note: The Snap does not support Net Zero Cloud Salesforce objects. Default value: Account Example: Account
Output Fields	Use this field set to enter a list of field names for the SOQL SELECT statement. If left empty, the Snap selects all fields.
Output Fields `String/Expression/ Suggestion`	Enter output field for SOQL statement. Default value: N/A Example: Id, Name, ShippingAddress
Output Field Limit `String/Expression`	Specify the number of output fields to return from the Salesforce object. Default value: N/A
Output Field Offset `String/Expression`	Defines a starting field index for the output fields. This is where the result set should start. Note: If you enter an offset value that is greater than 1, the first field "ID" is always returned, but the following fields start from the offset position. This is because the first field is the only unique identifier. Default value: N/A
Where Clause `String/Expression`	Enter the WHERE clause for the SOQL SELECT statement. Do not include the word WHERE. Note: Using quotes in field names values Do not use quotes for field names in the WHERE clause. Using quotes results in an error. Use only single quotes for values in the WHERE clause as using double quotes results in an error. The above rules do not apply when you are using SnapLogic expressions, you can use quotes for the field names and values as applicable. Default value: N/A Example: Id > '001i0000007FVjpAAG'
Order By Clause `String/Expression`	Enter the ORDER BY clause that you want to use with your SOQL SELECT Query. Note: PK Chunking does not support the ORDER BY clause. Default value: N/A Example: LastName, FirstName
Limit Clause `String/Expression`	Enter the LIMIT clause that you want to use with your SOQL SELECT Query. Note: PK Chunking does not support the LIMIT clause. Default value: N/A Example: 2000
Polling Interval `String`	Required. Define the polling interval in seconds for the Bulk API read execution. At each polling interval, the Snap checks the status of the Bulk API read batch processing. Maximum value: 60 Default value: 5 Example: 5
Polling Timeout `String`	Required. This property allows you to define the polling timeout in seconds for the Bulk API read batch execution. If the timeout occurs while waiting for the completion of the read batch execution, the Snap displays an exception. Default value: 3000 Example: 300
Process Date/time `Checkbox`	All date/time fields from Salesforce.com are retrieved as string type. Select this checkbox to allow the Snap to convert date/time fields to corresponding date/time types by accessing the metadata of the given SObject. Salesforce datetime is converted to Joda DateTime, Salesforce date to Joda LocalDate, Salesforce time to Joda LocalTime. Deselect this checkbox to allow the Snap to send these date/time fields without any conversion. Default value: Deselected
Include Deleted Records `Checkbox`	Select this checkbox to allow the Snap to include deleted records in the query. This feature is supported in REST API version 29.0 or later and Bulk API version 39.0 or later. Note: You can enable expressions for this field in order to use input values from the pipeline parameters. Pipeline parameters are strings, and any non-empty string is treated as `true` in the SnapLogic Expression Language. If you create expressions for Boolean properties that use pipeline parameters, keep this in mind. For example, `_IncludeDeleted` does not work correctly when the value is `false`. Instead, use `_IncludeDeleted == 'true'`. Default value: Deselected
Pass Through `Checkbox`	Select this checkbox to pass the input document to the output view under the key '`original`'. This is applicable for REST and Bulk APIs. Default value: Selected
Ignore Empty Results `Checkbox`	Select this checkbox to ignore empty results; no document will be written to the output view when the operation does not produce any result. If this property is not selected and Pass Through is selected, the input document will be passed through to the output view. If you do not select both the checkboxes, Ignore Empty Result and Pass Through, the Snap writes an empty output as below: `[{}]` Note: This property does not apply when you run the Snap in the Bulk API mode. When you run the Snap in Bulk API mode, if the Salesforce result is empty, the Snap does not pass the input document to the output view even if the Pass Through checkbox is selected. Default value: Selected
Bulk Content Type `Dropdown list`	Select the content type for Bulk API: JSON or XML. Note: The numeric type field values will be read as numbers in JSON content type, and as strings in XML content type, in the output documents. JSON content type for Bulk API is available in Salesforce API version 36.0 or higher. In REST API, the number-type field values will always be read as numbers. If the Bulk API has been selected along with 100,000/ 250,000 as batch size value, the content-type will always be CSV regardless of the value set in this property. Default value: XML Example: JSON
Number Of Retries `String/Expression`	Specify the maximum number of retry attempts in case of a network failure. Note: If the value is larger than zero in PK-Chunking, the Snap overrides user settings and sets Use temp files in PK-Chunking property to true. In Bulk API and PK-Chunking modes, the Snap downloads each batch of data into a temporary local file. When the download is complete, the Snap writes the output documents parsed from the temporary file to avoid the possibility of duplicated output documents in the downstream Pipeline. Ensure that the local drive has sufficient free disk space in the node where the Pipeline executes. All temporary local files are deleted when they are no longer needed. Minimum value: 0 Default value: 1 Example: 3
Retry Interval (seconds) `String/Expression`	Specify the minimum number of seconds for which the Snap must wait before attempting recovery from a network failure. Minimum value: 0 Default value: 1 Example: 3
Match Data Type `Checkbox`	Select this checkbox to match the data types of the Bulk API results with the data types of the REST API. This property applies only when the content type is XML for Bulk API (it does not apply to JSON). If the Bulk content type is XML, Salesforce.com returns all values as strings. If Match data type is selected, the Snap attempts to convert string values to the corresponding data types if the original data type is one of the following: boolean, integer, double, currency, or percent. This property is ignored in REST APIs or when the Bulk Content Type is JSON. For Bulk API, Salesforce.com does not return any value for null. This Snap does not honor the selection of the Match Data Type checkbox if the Use PK chunking if supported checkbox is also selected. Default value: Deselected
Advanced Properties	Use this field set to define additional advanced properties that you want to add to the Snap's settings. Additional advanced properties are not required by default, and the field-set represents an empty table property.
Properties `Dropdown list`	You can use one or more of the following properties in this field: Use temp files in PK-Chunking: Enter true if Groundplex is located where the network connection to SFDC is relatively slow. This will have the Snap in PK-Chunking download CSV files into compressed temporary local files in order to prevent SFDC to close input streams prematurely. Ensure that the Groundplex node has sufficient free disk space. Compressed local files are less than 10% of the total CSV data size. Setting this property to true may also be necessary if any of the downstream Snaps are relatively slow in processing the document stream. Default value: false. Number of threads in PK-Chunking: In PK-Chunking, the Snap invokes multiple threads to download CSV files in parallel with one CSV file per each thread. The maximum number of threads is 8 by default, but a lower number may be more efficient if the network connection to SFDC is relatively slow or downstream Snaps are slow in processing documents. Default value: 8. Validate record count downloaded in Bulk API: This is a boolean property that applies to Bulk API where the batch size 10,000 or less (not including PK Chunking). If set to true, the Snap checks if the number of records downloaded is the same as the one processed in Salesforce.com. Default value: false. Disable automatic vertical slicing: The Salesforce SELECT query does not support wildcards in field lists, and its query length cannot exceed 20,000 characters. When Output fields, Output field limit, and Output field offset properties are empty, the Snap formats the entire list of column names in the SELECT statement. If the query exceeds 20,000 characters, the Snap divides the query into two or more queries, executes them separately, and merges the query results automatically. This Snap feature is called Vertical Slicing. Default value: false. Default value: N/A
Values `String`	The value that you want to associate with the property selected in the corresponding Properties field. Default value: N/A
Snap execution `Dropdown list`	Choose one of the three modes in which the Snap executes. Available options are: `Validate & Execute`. Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime. `Execute only`. Performs full execution of the Snap during pipeline execution without generating preview data. `Disabled`. Disables the Snap and all Snaps that are downstream from it.

Temporary files

During execution, data processing on Snaplex nodes occurs principally in-memory as streaming and is unencrypted. When processing larger datasets that exceed the available compute memory, the Snap writes unencrypted pipeline data to local storage to optimize the performance. These temporary files are deleted when the pipeline execution completes. You can configure the temporary data's location in the Global properties table of the Snaplex node properties, which can also help avoid pipeline errors because of the unavailability of space. Learn more about Temporary Folder in Configuration Options.

PK Chunking

PK chunking splits bulk queries on very large tables into chunks based on the record IDs, or primary keys, of the queried records. Each chunk is processed as a separate batch that counts toward your daily batch limit. PK chunking is supported for the following objects: Account, Campaign, CampaignMember, Case, Contact, Lead, LoginHistory, Opportunity, Task, User, and custom objects.

PK chunking works by adding record ID boundaries to the query with a WHERE clause, limiting the query results to a smaller chunk of the total results. The remaining results are fetched with additional queries that contain successive boundaries. The number of records within the ID boundaries of each chunk is referred to as the chunk size. The first query retrieves records between a specified starting ID and the starting ID plus the chunk size, the next query retrieves the next chunk of records, and so on. Since Salesforce.com appends a WHERE clause to the query in the PK Chunking mode, if SOQL Query has LIMIT clause in it, the Snap will submit a regular bulk query job without PK Chunking.

Learn more about the Salesforce PK Chunking Header.

If you select the Use PK chunking if supported checkbox, the value from Batch Size is used as the PK chunking batch size. Please note that the chunk size applies to the number of records in the queried table rather than the number of records in the query result. For example, if the queried table has 10 million records and 250,000 is selected for Batch Size, 40 batches are created to execute the bulk query job. One additional control batch is also created and it does not process any records. The status of the submitted bulk job and its batches can be monitored by logging in to your Salesforce.com account and going to Setup. From Setup, enter Bulk Data Load Jobs in the Quick Find box, then select Bulk Data Load Jobs.

PK Chunking requires Service Version 28.0 or later, cannot be used with Order By Clause or Limit Clause, and isn't available for all Salesforce objects. Therefore, if Bulk API and Use PK chunking if supported are selected but other settings in the Snap don't support PK chunking, the Snap will submit a regular bulk query job without PK chunking and display a warning that PK chunking was not used.

If your account doesn't support PK chunking and you're using the Bulk API, deselect the Use PK chunking if supported checkbox.

Note: The output document schemas in preview mode (validation) and execution mode for this Snap may differ when using Primary Key (PK) Chunking mode. This is because the Snap intentionally generates the output preview using regular Bulk API instead of PK Chunking, to reduce the costs involved in the PK Chunking operation. Salesforce recommends the use of PK Chunking if the target Salesforce object (table) is relatively large (for example, more than few 100,000 records).
