Tc File Upload

This Snap has exactly one binary input view.

The required input of the snap is binary data of a file. Configuration requires the ID of the parent object the file shall be related to and the File Name and Relation information for the file that you want to be uploaded.

• File Reader
• Document to Binary

This Snap has exactly one document output view.

The output of the snap is the Metadata for the uploaded file in your Teamcenter.

• Mapper
• JSON Splitter

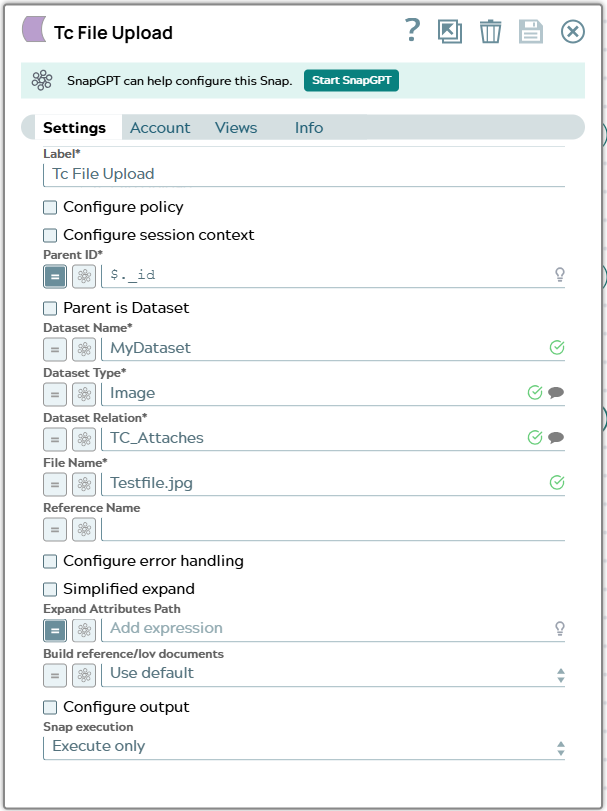

Default value: Tc File Upload

Specify a UID (unique identifier) or a Teamcenter adapter ID of the parent element where you want to upload the file to.

Default value: : $._id

Example: _docID

Select checkbox if parent object is a dataset.

Default value: Unselected

Example: Unselected

Appears when Parent is Dataset is deselected.

Specify the name of the dataset which will be created. Datasets are used to manage data files created by other software applications.

Default value: N/A

Example: DSTestUpload

Appears when Parent is Dataset is deselected.

Specify the type of the dataset which will be created. The dataset type is supposed to manage the filetype in Teamcenter and manages the authoring applications as well.

Default value: N/A

Example: Text

Appears when Parent is Dataset is deselected.

Specify the relation of the dataset with the file you want the Snap to upload.

Default value: N/A

Example: TC_Attaches

Specify the name of the file to upload.

Default value: N/A

Example: FileForDocumentation2.txt

Specify the name of the reference to be used.

Default value: N/A

Select this checkbox to make the Snap look for the name given in Expand Attributes Path in the input document (for example, $expand) or in the Pipeline parameters (for example, _expand), and use that content. Expand Attributes Path then changes to a String field with the default value $.expand. In Pipeline parameters, separate the attribute names with commas.

When deselected, configure Expand Attributes Path as a string or an expression.

Default status: Deselected

Specify the JSON path to the expand attributes in the input document. Expand attributes are the list of attributes that the Teamcenter response must contain. Each name must be the technical name of a valid property in the Teamcenter data model for the expected objects. For example:

"expandAttributes": [
  "item_id",
  "item_revision_id",
  "last_mod_date",
  "object_string",
  "items_tag.uom_tag"
]

Learn more: Configuring Expand Attributes.

Default value: N/A

Example: $.expandAttributes

Select how the Snap represents references and lists of values (LOVs) that Teamcenter returns. The Snap can return them as nested JSON objects instead of flattened IDs and internal values with additional _DISPLAY attributes:

• References become {"_id": …, "UID": …, "_display": …} or null, including inside reference arrays.
• LOVs become {"_value": …, "_display": …} or null, including inside LOV arrays.

The available options are:

• Yes. The referenced object or LOV is a separate JSON object in the result. For example:

  "owning_user": {
    "_id": "TC*User*null***AgKAUUYTZLWoZA",
    "object_string": "user111 (user111)",
    "UID": "AgKAUUYTZLWoZA"
  }

• No. The referenced object or LOV is flattened into attributes on the current result object, and synthetic attributes such as those ending in _DISPLAY are added. For example:

  "owning_user": "TC*User*null***AgKAUUYTZLWoZA",
  "owning_user_DISPLAY": "user111 (user111)"

• Use Default. The Snap uses the default configured for the Snap Pack, which is Yes or No depending on the adapter.tc.snaplogic.expandReferencesAndLovs setting in the teamcenter_snappack.properties file.

Default value: Use Default

Example: Yes
