Snowflake S3 Dynamic Account

Overview

You can use this account type to connect Snowflake Snaps with data sources that use Snowflake S3 Dynamic accounts.

Note: Expression-enabled authentication fields, such as Username, Password, and Client Secret, support Secrets Management, a SnapLogic add-on that allows you to store endpoint credentials in a third-party secrets manager, such as AWS Secrets Manager, Azure Key Vault, or HashiCorp Vault. During validation and execution, pipelines obtain the credentials directly from the secrets manager. Learn more: Configure Accounts to use secrets.

Prerequisites

None

Limitations and Known Issues

If an S3 bucket is specified in the SnapLogic Snowflake Account, the S3 credentials are validated as follows:
- The S3 access-key ID and S3 secret key specified are used to create an S3 connection.
  - If the S3 access-key ID and S3 secret key are not specified, the Snap uses the IAM role instead.
  - If the Snap is not able to write to the S3 bucket, validation ends with an error stating that the Snap is unable to write to the specified S3 bucket.
- If the Snap is able to write to (but not delete from) the specified S3 bucket, validation ends with an error indicating that the configuration is not able to delete from the S3 bucket.
- The S3 AWS token is also validated if specified.
  - Note that only global Security Token Service (STS) regions are supported.
If an S3 bucket isn’t specified in the SnapLogic Account, no validation of S3 credentials occurs.

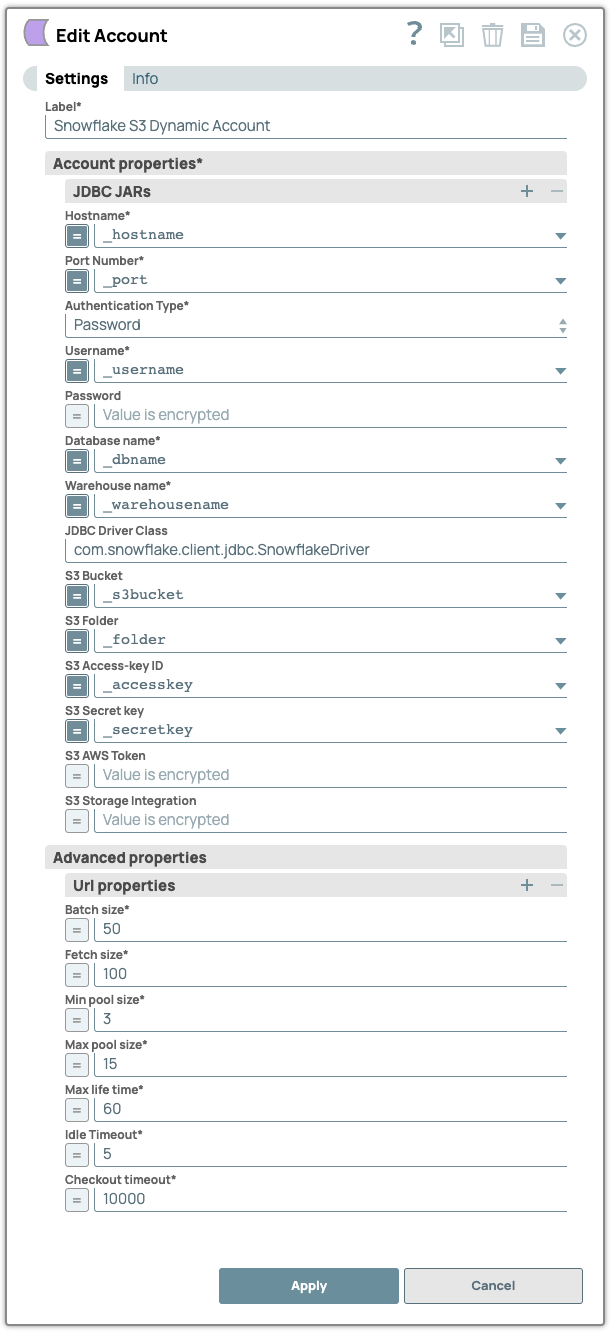

Account settings

Legend:

Expression icon (): Allows using JavaScript syntax to access SnapLogic Expressions to set field values dynamically (if enabled). If disabled, you can provide a static value. Learn more.
SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
Upload : Uploads files. Learn more.

Learn more about the icons in the Snap settings dialog.


Field / Field set	Type	Description
Label	String	Required. Specify a unique label for the account. Default value: N/A Example: Snowflake_S3_Dynamic_Account
JDBC JARs	Use this field set to add a list of JDBC JAR files to be loaded. By default, the Snowflake account is bundled with the JDBC driver version 3.24.2. However, you can add a custom JAR file. Click + to add a new row for each JDBC JAR file. Add each JAR file in a separate row. See Downloading the JDBC driver for more information about JDBC drivers and downloading the appropriate driver for your account..
JDBC Driver	String	Specify the fully-qualified name of the JDBC driver class to be used for connecting to the server. Note: The Snowflake Snap Pack is bundled with the default Snowflake JDBC driver v3.24.2. Therefore, even if you do not provide a JDBC Driver, the account does not fail. Default value: N/A Example: snowflake-jdbc-3.24.2.jar
Hostname	String	Required. Specify the hostname of the Snowflake server to connect the new account. Default value: N/A Example: demo.snowflake.net
Port Number	Integer/Expression	Required. Specify the port number associated with the Snowflake database server that you must use for this account. Default value: 443 Example: 332
Authentication Type	Dropdown list	Required. Choose an authentication type to connect to the database. The available options are: Password: Authenticates with the Username and Password credentials. Key Pair: Authenticates using the Private Key and Encrypted Private Key Passphrase. Example: Key Pair
Username	String	Appears when Password is selected. Specify the username to connect to the Snowflake database server.. Default value: N/A Example: SW_User
Password	String	Appears when you select Password for Authentication Type . Specify the password associated with the username specified above. This will be used as the default password while retrieving connections. Default value: N/A Example: ll@98#*00w
Encrypted Private Key	String	Appears when you select Key Pair for Authentication Type. Specify the key that you have generated for authentication. The key must include the generated header and footer. Note: The Private Key is read, decrypted if necessary, and included with properties to connect to Snowflake, where it is validated with its paired Public Key to authenticate the connection. Learn more about configuring and generating a valid key pair. Default value: N/A Example: -----BEGIN PRIVATE KEY-----MIIE6TAbBgkqhkiG9w0BBQMwDgQILYPyennlX2bd8yX8 xOxGSGfvB+99+PmSlex0FmY9ov1J8H1H9Y3lJXXb -----END PRIVATE KEY-----
Encrypted Private Key Passphrase	String/Expression	Appears when Key Pair is selected for Authentication Type. Specify the encrypted passphrase. Specify the encrypted private key passphrase for authentication. Default value: N/A Example: Nki62lmWfFO75Xg04W+Fnlt9ejiMn4zPbkf/me Aq1R3X7CM/ORLuLms4vU70NjzNYo09SOUXhQmoqpEkQBvrrYuzdaQt5hvwh7vZQh WZ5L8+lTRoAneFtmd6LZ94AssA==
Database name	String/Expression	Required. Specify the Snowflake database to connect to. Default value: N/A Example: testdb
Warehouse name	String/Expression	Required. Specify the name of the warehouse to which you want to connect. Default: None Example: testwh
JDBC driver class	String	Specify the JDBC driver class to use. Default value: net.snowflake.client.jdbc.SnowflakeDriver Example: net.snowflake.client.jdbc.SnowflakeDriver
S3 bucket	String	Specify the name of the S3 bucket that you want to use for staging data to Snowflake. If you want to delete the temporary files from the S3 Bucket, we recommend you assign the delete object permission policy to delete the files. Learn how to assign delete object permission to an S3 user in AWS S3. If you do not want to delete the temporary files, you can add an error view to the Snap and run the pipeline Default: None Example: sl-bucket-ca
S3 folder	String/Expression	Specify the relative path to a folder in the S3 bucket listed in the S3 Bucket field. This is used as a root folder for staging data to Snowflake. Default: None Example: sl-bucket-cas3/test
S3 access-key ID	String/Expression	Specify the S3 access key ID that you want to use for AWS authentication. Default: None Example: NAVRGGRV7EDCFVLKJH
S3 secret key	String/Expression	Specify the S3 secret key associated with the S3 Access-ID key listed in the S3 Access-key ID field. Default: None Example: 2RGiLmL/6bCujkKLaRuUJHY9uSDEjNYr+ozHRtg
S3 AWS token	String/Expression	Specify the S3 AWS Token to connect to private and protected Amazon S3 buckets. Note: Only global Security Token Service (STS) regions are supported. Default: None Example: AQoDYXdzEJr
S3 storage integration	String/Expression	Specify the S3 Storage Integration for Snowflake to be used for staging data instead of using AWS Acces-key ID and S3 Secret key. This value is necessary for validating data after a bulk load or bulk insert operation.
URL Properties	Use this field set to define additonal URL properties to use if any. Note: Granting roles You can grant roles to the SnapLogic Snowflake account by using the role parameter in the URL Properties field set. Ensure that the roles are predefined in your Snowflake account before configuring the SnapLogic Snowflake account. See Roles and Grant Roles for details.
URL property name	String	Specify the name of the URL property. Default: None Example: queryTimeout
URL property value	String	Specify the URL property value associated with the URL property name. Default: None Example: 4
Batch size	Integer/Expression	Required. Specify the number of Snowflake queries that you want to execute at a time. Select queries are not batched. Using a large batch size could use up the JDBC placeholder limit of 2100. Default value: 50 Example: 40
Fetch size	Integer/Expression	Required. Specify the number of rows you want a query to fetch during each execution. Note: Large values could cause the server to run out of memory. Default value: 100 Example: 200
Min pool size	Integer/Expression	Specify the minimum number of idle connections that you want the pool to maintain at a time. Default value: 100 Example: 200
Max pool size	Integer/Expression	Specify the maximum number of connections that you want the pool to maintain at a time. Note: Snowflake Bulk Load/Bulk Upsert/S3 Upsert Snap requires a minimum of 2 connections per Snap in a pipeline. For example, if a pipeline has a Snowflake Bulk Load Snap and an S3 Upsert Snap, then the pool size must be greater than or equal to 4 for successful execution. Minimum value: 0 Maximum value: No limit Default value: 15 Example: 40
Max lifetime (minutes)	Integer/Expression	Specify the maximum lifetime of a connection in the pool. Ensure that the value you enter is a few seconds shorter than any database or infrastructure-imposed connection time limit. A value of 0 indicates an infinite lifetime, subject to the Idle Timeout value. An in-use connection is never retired. Connections are removed only after they are closed. Default value: 60 Example: 50
Idle timeout (minutes)	Integer/Expression	Specify the maximum amount of time a connection is allowed to sit idle in the pool. Note: A value of 0 indicates that idle connections are never removed from the pool. Default value: 5 Example: 4
Checkout timeout (milliseconds)	Integer/Expression	Specify the number of milliseconds you want the system to wait for a connection to become available when the pool is exhausted. Note: If you provide 0, the Snap waits infinitely until the connection is available. Therefore, we recommend you not to specify 0 for Checkout Timeout. For any other value, the system throws an exception after the wait time has expired. Default value: 10000 Example: 9000

Generating a Valid Key Pair

In a Linux terminal, run the following command to generate a Private Key stored in PKCS8 format:: openssl genrsa 2048 | openssl pkcs8 -topk8 -inform PEM -out rsa_key.p8
Generate a public key by referencing the previously generated private key rsa_key.p8 : openssl rsa -in rsa_key.p8 -pubout -o ut rsa_key.pub
Store the generated private key (rsa_key.p8) and public key (rsa_key.pub) in a safe location.
In the Snowflake console, assign the public key to the required Snowflake user. Exclude the header and footer from the public key ALTER USER jsmith SET RSA_PUBLIC_KEY='MIIBIjANBgkqh...';.
In the Snowflake console, verify the assignment of the public key to the required Snowflake user: DESC USER jsmith;
Specify the entire Private Key and include the header and footer in the Private Key field of the Snowflake account.

Note: Snowflake supports multiple active keys for uninterrupted rotation. Learn more: Key Pair Authentication & Key Pair Rotation — Snowflake Documentation.

Troubleshooting


Error	Reason	Resolution
Unsupported Private Key format	Only PKCS8 format is supported.	Provide a PKCS8 format Private key and retry.
Unable to read Private Key	Private Key and Passphrase Key combination is invalid. Private Key is invalid.	Verify the Private key and Passphrase and retry. Verify the Private key is correct with header, footer, and line breaks, and then retry.
Failed to validate account	The specified Private Key is unencrypted, and unencrypted Private Key is not supported.	Specify a valid Encrypted Private Key
Failed to retrieve a database connection.	Connection is not available; request time out after 10000ms.	Increase the maximum pool size in account configuration.
