Databricks - Unload

Overview

You can use this Snap to unload data from the tables in your Databricks Lakehouse Platform (DLP) instance to a file in the cloud location. You can save the file in CSV, JSON, PARQUET, ORC, or AVRO format and as multiple partitions if needed. Ensure that you configure a valid target location in the Snap’s account for saving the file in the preferred format.



Prerequisites

  • Valid access credentials to a DLP instance with adequate access permissions to perform the action in context.
  • Valid access to the external source data in one of the following: Azure Blob Storage, ADLS Gen2, DBFS, GCP, AWS S3, or another database (JDBC-compatible).

Limitations

Snaps in the Databricks Snap Pack do not support array, map, and struct data types in their input and output documents.

Snap views

View Description Examples of upstream and downstream Snaps
Input A JSON document containing parameterized inputs for the Snap’s configuration, if needed.
Output A JSON document containing the unload request details and the result of the unload operation.
Error

Error handling is a generic way to handle errors without losing data or failing the Snap execution. You can handle the errors that the Snap might encounter when running the pipeline by choosing one of the following options from the When errors occur list under the Views tab. The available options are:

  • Stop Pipeline Execution Stops the current pipeline execution when an error occurs.
  • Discard Error Data and Continue Ignores the error, discards that record, and continues with the remaining records.
  • Route Error Data to Error View Routes the error data to an error view without stopping the Snap execution.

Learn more about Error handling in Pipelines.

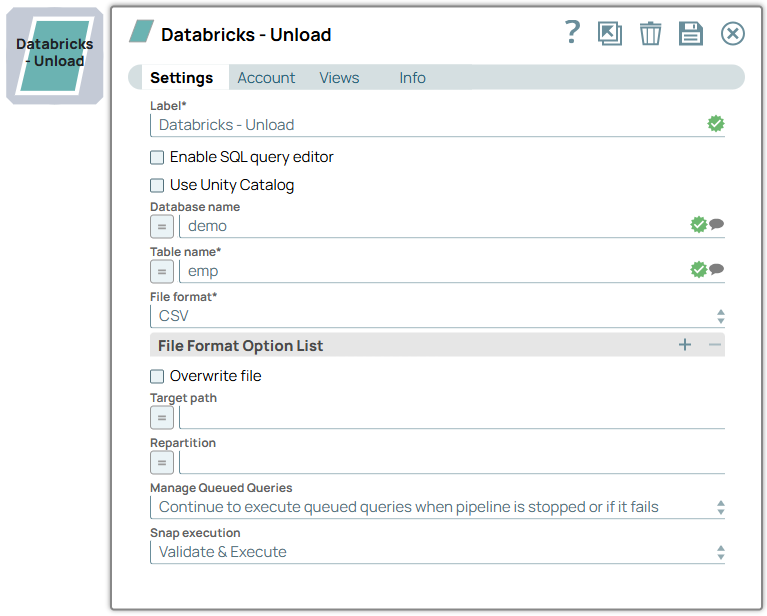

Snap settings

Legend:
  • Expression icon (): Allows using pipeline parameters to set field values dynamically (if enabled). SnapLogic Expressions are not supported. If disabled, you can provide a static value.
  • SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
  • Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
  • Upload : Uploads files. Learn more.
Learn more about the icons in the Snap settings dialog.
Field / Field set Type Description
Label String

Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline.

Default value: Databricks - Unload

Example: ELT RS Account
Use unity catalog Checkbox Select this checkbox to use the Unity catalog to access data from the catalog.

Default status: Deselected
Catalog name String/Expression/ Suggestion Appears when you select Use unity catalog.

Specify the name of the catalog for using the unity catalog.

Default value: hive_metastore

Example: xyzcatalog
Enable SQL query editor Checkbox Select this checkbox to write the SQL statement instead of specifying the Database name and Table name.

Default status: Deselected
SQL Query Editor String/Expression Appears when you Enable SQL query editor checkbox is selected.

Required. Specify the SQL statement, usually the SELECT statement, to indicate the source data for the unload operation.

Tip: Avoid specifying multiple SQL statements in this query editor field.

Default value: None.

Example: SELECT * from cust_table1
Database name String/Expression/ Suggestion Appears when you Enable SQL query editor checkbox is not selected.

Specify the name of the source table’s database in plain text, as an expression, or using the suggestions list for the unload operation.

Default value: None.

Example: customer_data
Table name String/Expression/ Suggestion Appears when you Enable SQL query editor checkbox is not selected.

Required. Specify the name of the source table in plain text, as an expression, or using the suggestions list. The unload operation is performed on this table when your run the Pipeline.

Default value: None.

Example: customer_data
File format Dropdown list Required. Select the file format for the file to which the source table data must be unloaded.

Default value: ORC

Example: AVRO
File Format Option List You can use this field set to define the list of file format options to apply while unloading the data. Specify one file format option in each row. The list of file format options available vary based on the File format selected.
File format option String/Expression/ Suggestion Enter the file format option with the right syntax or choose from the suggested list of file format options that is based on the file format selected. Ensure to edit the option without changing the expected syntax to suit your unloading requirement.

Default value: None.

Example: 'nullValue' = ''
Overwrite File Checkbox Select this checkbox to overwrite the file if it exists in the specified target path.

Default status: Deselected
Target Path String/Expression Enter the relative path for saving the target file that contains the unloaded data.
Note: Ensure that you have configured the Snap’s account with the details required to access this target location.

Default value: None.

Example: /databricks/unloads/csv_files
Repartition String/Expression Specify the number of partitions (positive integers only) that you need to store the unloaded data file in the target location.

Default value: None.

Example: 4
Manage Queued Queries Dropdown list Select this property to determine whether the Snap should continue or cancel the execution of the queued Databricks SQL queries when you stop the Pipeline.
Note: If you select Cancel queued queries when pipeline is stopped or if it fails, then the read queries under execution are cancelled, whereas the write type of queries under execution are not cancelled. Databricks internally determines which queries are safe to be cancelled and cancels those queries.
Warning: Due to an issue with DLP, aborting an ELT Pipeline validation (with preview data enabled) causes only those SQL statements that retrieve data using bind parameters to get aborted while all other static statements (that use values instead of bind parameters) persist.

  • For example, select * from a_table where id = 10 will not be aborted while select * from test where id = ? gets aborted.

To avoid this issue, ensure that you always configure your Snap settings to use bind parameters inside its SQL queries.

Default value: Continue to execute queued queries when pipeline is stopped or if it fails.

Example: Cancel queued queries when pipeline is stopped or if it fails
Snap execution Dropdown list
Choose one of the three modes in which the Snap executes. Available options are:
  • Validate & Execute: Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime.
  • Execute only: Performs full execution of the Snap during pipeline execution without generating preview data.
  • Disabled: Disables the Snap and all Snaps that are downstream from it.

Default value: Execute only

Example: Validate & Execute

Troubleshooting

Error Reason Resolution
Missing property value You have not specified a value for the required field where this message appears. Ensure that you specify valid values for all required fields.

Examples
